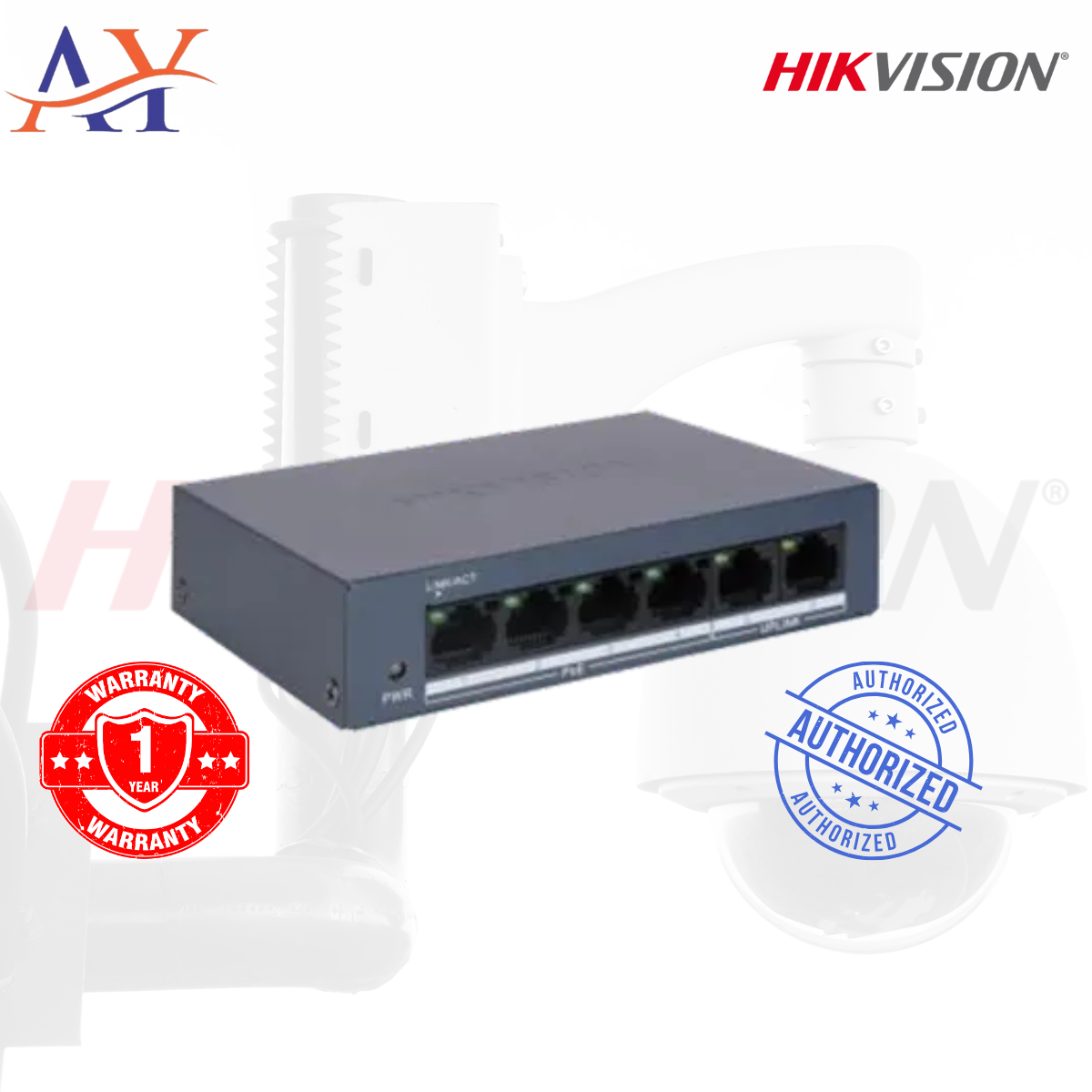

Hikvision DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged POE Switch

$ 17.80

Categories: Projects Kits,

Specification General Shell Metal material, fan-free design Net Weight0.19 kg (0.42 lb) Gross Weight0.63 kg (1.39 lb) Dimensions (W × H × D)121.10 mm × 27.60 mm × 83.10 mm (4.77” × 1.09” × 3.27”) Operating Temperature0 °C to 40 °C (32 °F to 104 °F) Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity5% to 95% (no condensation) Relative Humidity5% to 95% (no condensation) Power Supply48VDC, 1.04A Max. Power Consumption50 W Power Consumption in Idle1.6 W Installation ModeDesk-Mounted,Wall-Mounted Surge Protection2 KV Network Parameters Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port MAC Address Table2 K Switching Capacity1.2 Gbps Packet Forwarding Rate0.89 Mpps Internal Cache768 Kbits PoE Power Supply PoE Power Pin End-span: 1/2(-), 3/6( ) PoE Port PoE: Ports 1 to 4 PoE Power Budget45 W Approval EMCCE-EMC (EN 55032: 2015 A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013 A1: 2019, EN 50130-4: 2011 A1: 2014, EN 55035: 2017 A11: 2020) Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014 A11: 2017) Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
