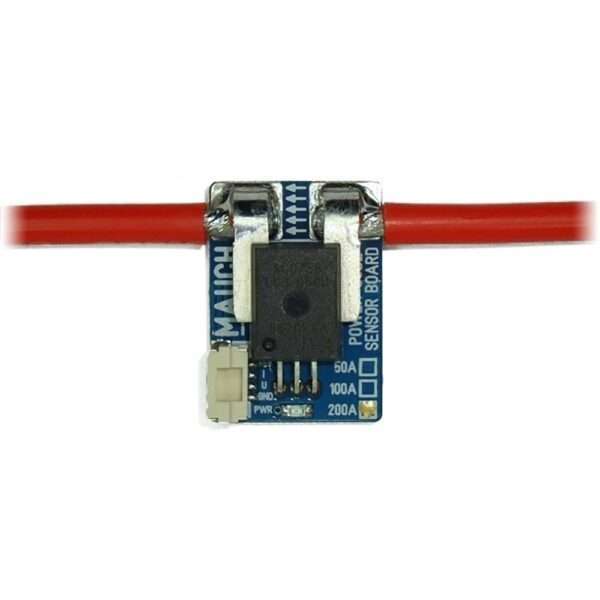

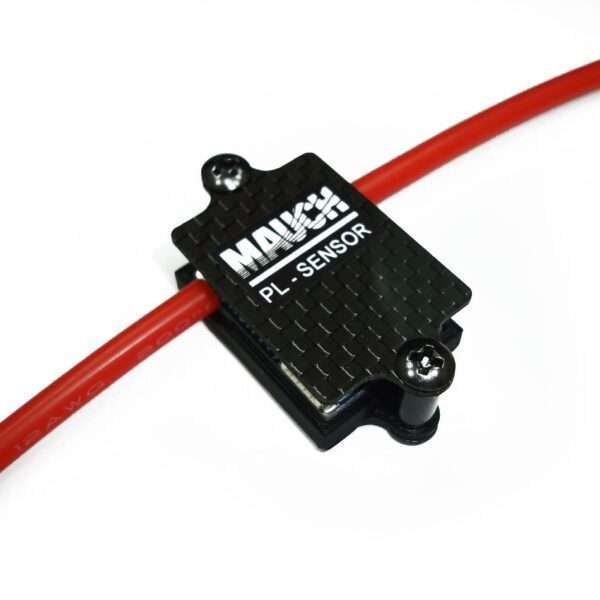

004: PL-200/8 Sensor Board with CFK enclosure in India

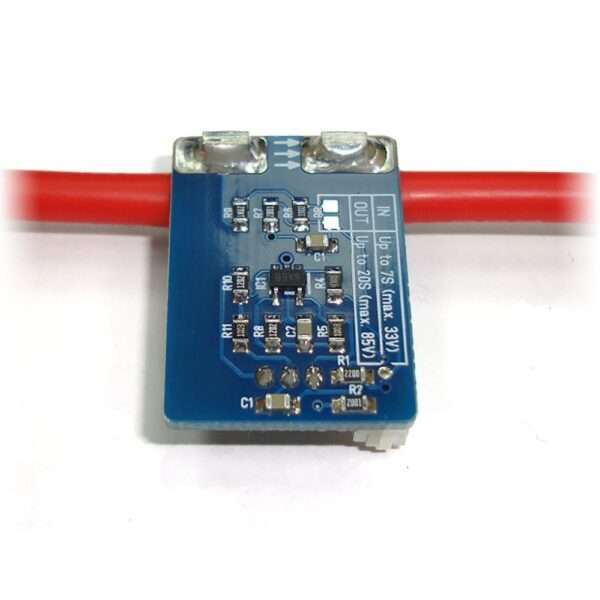

Voltage range is up to 20S (85V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details. This sensor board connects directly to any Premium-Line (PL-Series) BEC or Sensor Hub X2 (V2). Connected to the sensor are 2 x 15cm AWG8 wire (red) as a standard. REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400) Delivered; without sensor cable (comes with the Mauch BEC’s), with CFK enclosure Specification: Size: Without CFK enclosure: 27.5 x 19.5 x 10.5mm (with 2 x 15cm 8AWG) With CFK enclosure: 43.5 x 23.0 x 15mm (with 2 x 15cm 8AWG)
