Mauch 003: PL-200 Sensor Board with CFK enclosure 4s to 14s with10 Awg wire

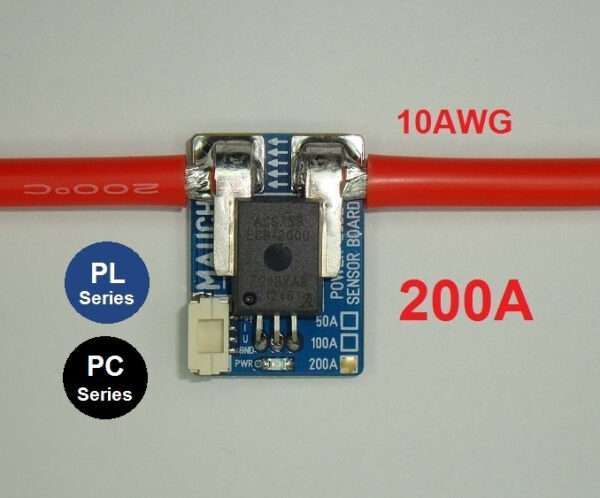

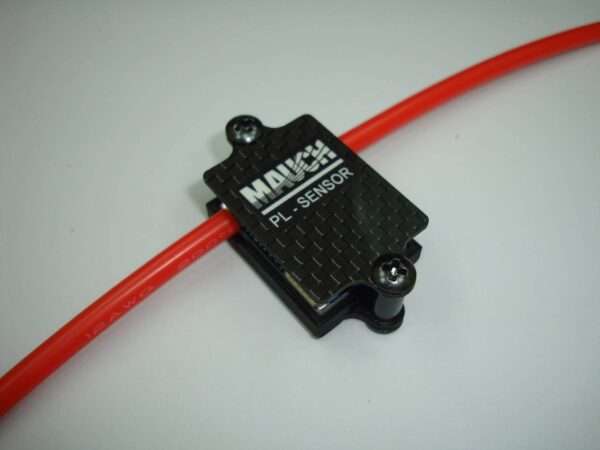

200A – Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-200U. Voltage range is up to 20S (85V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the maual page for more details. This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2. Connected to the sensor are 2x10cm AWG10 wire (red) as a standard. REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400) Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 22g (with 2x 10cm 10AWG) With CFK enclosure = 43.5 x 23.0 x 15mm / 27g (with 2x 10cm 10AWG) Delivery in PP box: 65 x 65 x 20mm / 42g Delivery without sensor cable (comes with the BEC’s), with CFK enclosure REM: If you want to use your own BEC, then please order a sensor cable (040) and ensure that the supplied voltage is within 4.95-5.05V.
