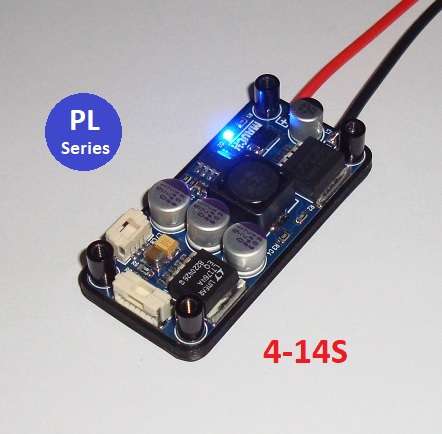

MAUCH 021: PL 4-14S HYB-BEC / 1x 5.3V For UAV /Drones in India

Input 4-14S LiPo/max. 60V. Output 5.30V / 3A -> /- 0.05V –> Ripple 1mV @ 1.5A output current. Inclusive LDO power supply ( 5.00V /- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output connector with Molex Clik-Mate 4p. Blue power “ON’ LED. 59mm x 29mm x 13mm / 26g with enclosure(without cables) Delivery in PP box: 55 x 55 x 20mm Scope of delivery: 1x  021: PL 4-14S HYB-BEC / 1x 5.3V / 3A 1x  040: PL – Series sensor cable / L=150mm 1x  Enclosure REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC: 041: DF13-6p -> Pixhawk 1 / APM… etc. 042: Molex Clik-Mate 2.0 – 6p -> Pixhawk 2.1 043: JST-GH-6p -> Pixhawk 3… etc
