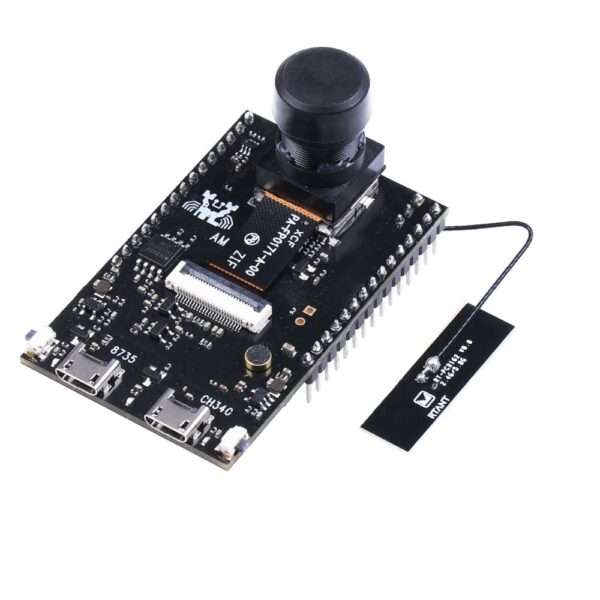

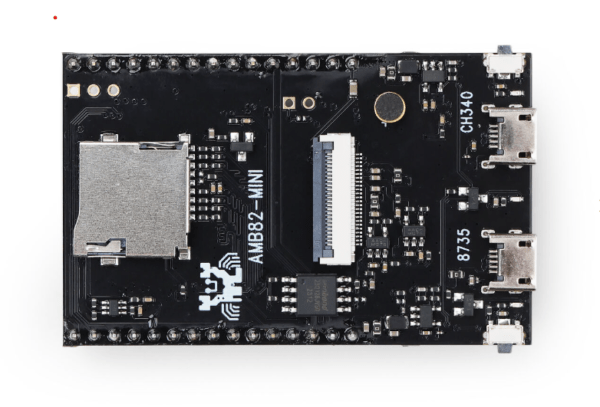

Realtek AMB82-Mini IoT AI Camera Arduino Dev. Board

The AMB82-MINI development board is adopting Realtek RTL8735BDM SoC. RTL8735BDM is a highly integrated low-power 802.11 a/b/g/n WLAN and Bluetooth camera SoC, it combines arm® v8M MCU(500MHz and 2.23 DMIPS/MHz), dual-band Wi-Fi, Bluetooth BLE5, audio codec, ISP and H264/H265 encoder, DDR2 128MB memory, and neural network intelligent engine in a single chip. It also provides useful high-speed connectivity interfaces, such as a USB 2.0 host, USB 2.0 device, SD host, and a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage. Feature: Worldwide leading Ultra-Low-Power AI Wi-Fi IP Camera SoC：8-in-1 SoC featuring embedded AI & NPU, High resolution up to 2K Fast boot-up in milliseconds; ultra-low power in microampere Supporting battery-powered, AI & IoT Ecosystems Multiple streams real-time H.265/H.264/JPEG encoding SDK supports free RTOS, IAR, GCC, Arduino IDE Package Includes: 1 x Realtek AMB82-MINI Dev. Board 1 x Dualband Wi-Fi (2.4GHz/5GHz) ipex antenna 1 x Taiyee camera module(F37)
