Mauch 030: PL – 2x 200A PDB / 10AWG in india

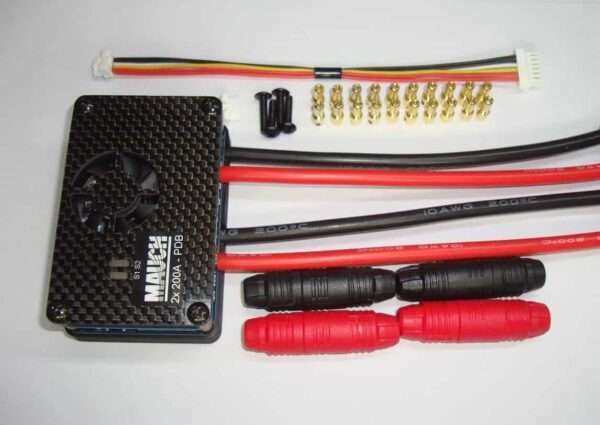

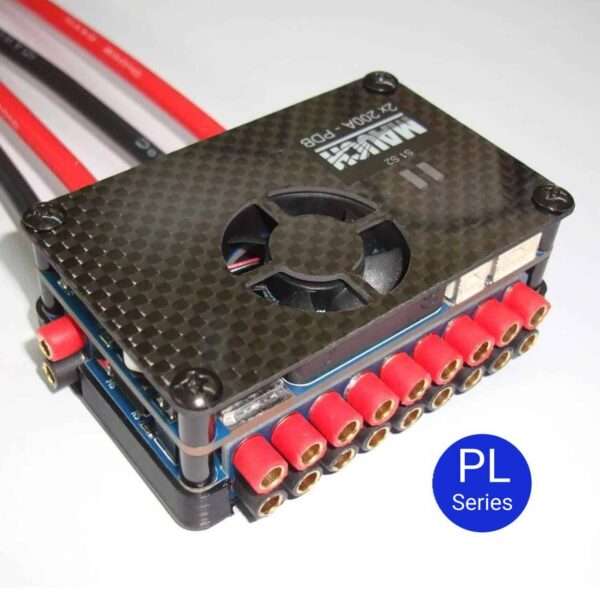

Input: Single or Dual 4-14S LiPos (60V max) Outputs: 5.3V @ 3A for flight controller Molex CLIK-Mate 2.0mm 6p 10x LiPo voltage level @ 40A max 3.5mm bullet connector pairs (red and black) This all-in-one dual battery PDB integrates 2x 200A Hall current sensors, an X2 Sensor Hub, a 4-14S HYB-BEC, and a main power switch capable of withstanding 400A continuously! Less wiring = less weight = longer flight times The PDB features a unique flight controller warm-up mode! When powered, the PDB supplies power only to the flight controller. Once the flight controller’s IMU has reached set temperature and GPS has a lock, press the Power Switch to turn on the rest of your equipment! Saves battery while waiting for warm up/gps lock; safer as power to motors is off during flight controller warm up. This feature requires the 059: Power-Cube V3 Switch which can be ordered below. What’s included: 1x 400A (200A per input) PDB with soldered 10AWG 2x 20cm input wires, CFK enclosure and fan 1x 042: power cable for Pixhawk 2.1 Molex CLIK-Mate 1.25mm 6p to Molex CLIK-Mate 2.0mm 6p / L = 150mm 20x 3.5mm bullet connectors (male) 2x 26cm Red/Black shrinking tube 2 pairs AMASS / AS150 connector Dimensions and weight: 75 x 49 x 27mm / 110g with enclosure
