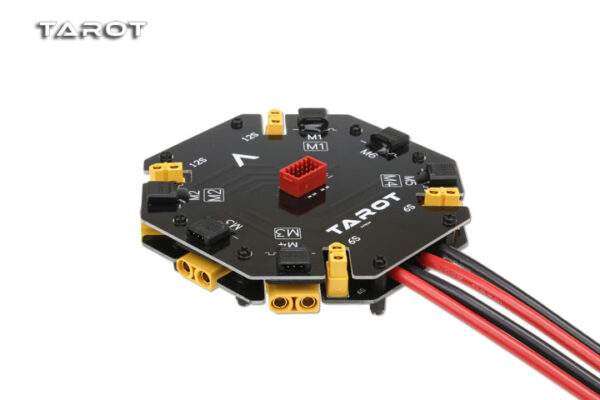

Tarot 12S distribution board TL2996

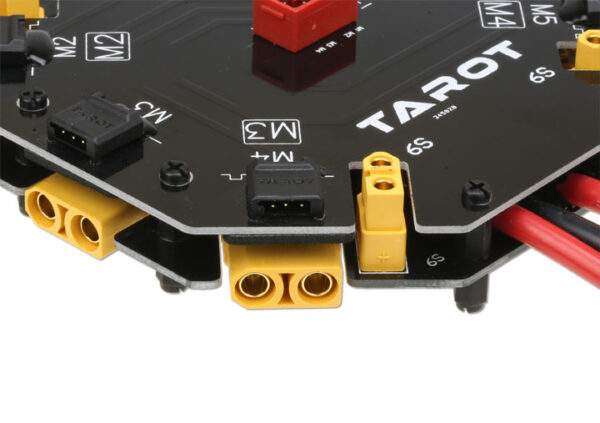

The new XT90 plug supports two 6S batteries in a series. The new XT90 plug supports two 6S batteries in series, and a 10AWG power cord is reserved. Reserve two 6S power supply interfaces / two 12S power supply interfaces. The brushless ESC signal socket uses a customed anti-mis-insertion design. The customized ESC red signal hub also prevents miss-insertion design to guide accurate wiring to prevent the UAV’s vibration from affecting the contacts’ reliability. The overall details show the quality and ingenuity. Remote Control Peripherals/Devices:12S 480A. Upgrade Parts/Accessories: High Current Distribution Board. Features: 1. Power input line using 10awg silicone wire, length up to 185mm. 2. Support two 6S batteries in series into 12S voltage input, also can directly input one 6S battery. 3. Brushless ESC signal socket adopts customized ESC red signal hub with anti-misplug design. 4.ESC power supply interface using the new XT90 plug,reserved for two 6S(XT60)output interface(if you choose one way 6S battery input,then this 2 way no output voltage),two 12S (XT60) output interface. Package Includes: 1 x Tarot 12S distribution board TL2996
