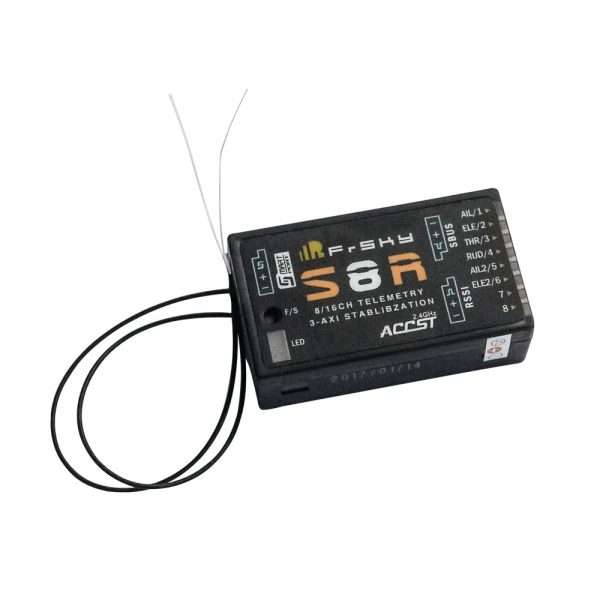

FrSky S8R 8/16ch Receiver w/ 3-Axis Stabilization Smart Port, SBUS

The S8R stabilizing parameters can be configured in the field using your FrSky transmitter or by connecting the S8R to your PC using the optional STK usb adapter. The S8R can also function as a typical 8 channel receiver by turning off stabilization. Features: 3-Axis gyroscope and 3-Axis Accelerometer RSSI PWM output (0≈3.3V) Smart Port enabled Firmware is up-gradable NOTE: May not be compatible with early Taranis radios, Taranis Plus radios and all other FrSky transmitters are fine. DIMENSIONS 47x24x15mm (LxWxH) WEIGHT 13.2g OPERATING VOLTAGE DC 4V≈10V NO. OF CHANNELS 8 CURRENT CONSUMPTION 100mA@5V OPERATING RANGE Full Range GYROSCOPE MEASUREMENT RANGE ±2000dps ACCELEROMETER MEASUREMENT RANGE ±4g PWM OUTPUT VOLTAGE 0≈3.3V, 100HZ, 1500±500uS
