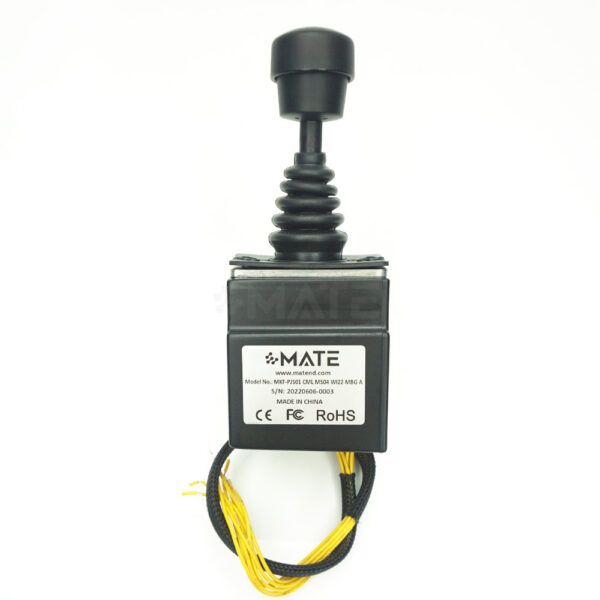

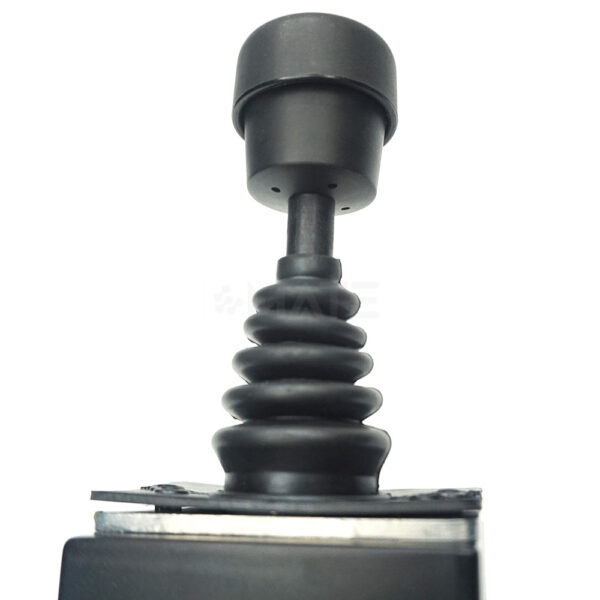

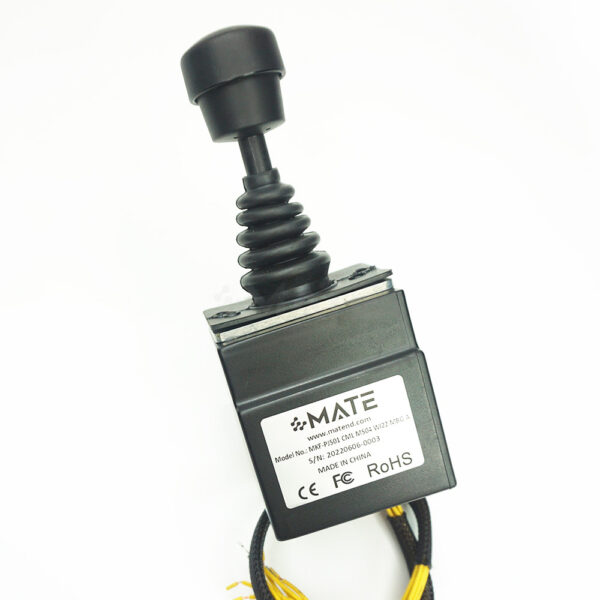

MKF-PJS01 Professional Industrial Potentiometer Joystick

Electrical Data Potentiometer Power Supply Resistance <36Vdc Resistance 2KΩ, 5KΩ, 10KΩ Center Angle ±3° Maximum Dissipation 0.2W Hall Power Supply 5±0.5Vdc Supply Current <11mA (Setting Power supply) Maximum Allowable Overload Voltage 20Vdc Reverse Maximum Allowance Voltage -10Vdc Output Linearity Tolerance <±0.2V With electronic amplifier Supply Voltage 18~36Vdc (U 21~U 25), 9~36Vdc (I 21~I 22) Current Consumption <20mA Maximum Output Current 10mA(Standard power supply) Microswitch Load Capacity 10A@30Vdc (Resistive load)) Expecting Life 5 million times (Mechanical), 200 thousand times (Electrical)) Insulation Resistance >100MQ (500Vdc Insulating-resistance) Breakout Angle ±5° Environmental Data Operating Temperature -30℃~ 70℃ Storage Temperature -40℃~ 85℃ Protection Level IP65 (Above the Panel) Breakout Angle ±5° Mechanical Features Travel Angle ±37.5°or 75°(single direction) Operating Type Spring return or Friction Breakout Force 8N (spring) 16N (Friction) Operating Force(max) 18N (spring) 16N (Friction) Maximum Allowable Force >260N Expecting Life >1 million cycles(potentiometer), >5million cycles (hall) Weight 500g (without handle )
