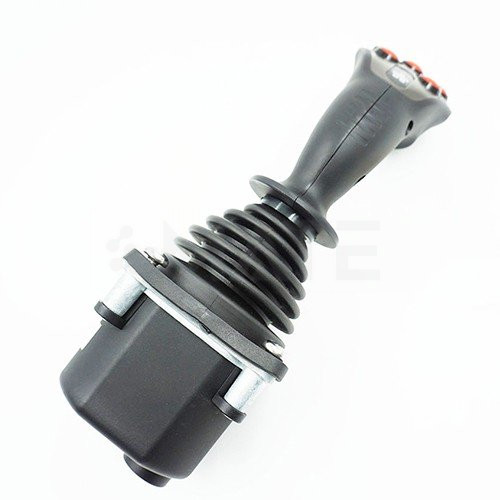

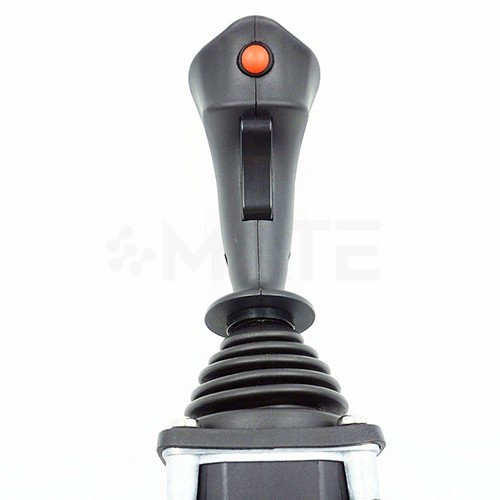

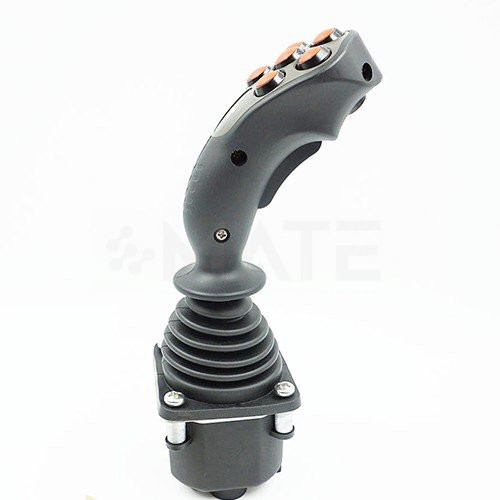

MKF-PJS04 Hall / Potentiometer Effect, Dual Axis, Panel Mounted

Electrical data Potentiometer Power supply <36Vdc Resistance 2KΩ, 4KΩ, 5KΩ, 10KΩ Electrical angle ±18° Center voltage 48%~52%Vdc (Power supply) Center tap angle ±2.5° On-load voltage (max) 32Vdc Power dissipation 0.25W ( 25°) Hall Power supply 5±0.5Vdc Supply current <11mA (Each of hall ) Maximum allowable overload voltage 20Vdc Reverse maximum allowable voltage -10Vdc Output linearity tolerance <±4V Directional switch Load capacity 2mA@30Vdc (Resistance load) Breakout angle ±3°~ 5° Contact resistance <200Ω With electronic amplifier Power supply 18~36Vdc (U21~U24) 9~36Vdc Power current consumption <20mA Maximum output current 10mA CAN BUS Power supply 9~36Vdc CAN Version CAN 2.0B Protocol J1939 Connector 6 p-pin (Deutsch) Microswitch Load capacity 4A@30Vdc (Resistance load) Expecting life 30 million times (Mechanical)  200 thousand times (Electrical) Insulation resistance >100MΩ Breakout angle ±3°~ 5°   Mechanical features Travel angle ±20° Operating type Spring return Breakout force 7N Operating force(max) 16N Maximum allowable force >300N Expecting life >2million cycles (Potentiometer) >5 million cycles (Hall effect) Weight 475g (Without handle) Environmental data Operating Temperature -30℃~ 70℃ Storage Temperature -40℃~ 85℃ Protection level IP65 (Above the flange)
