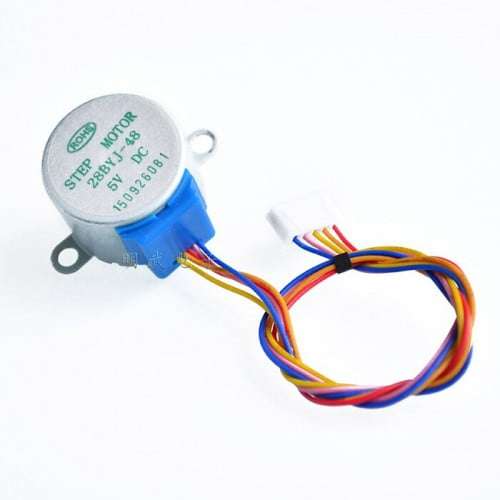

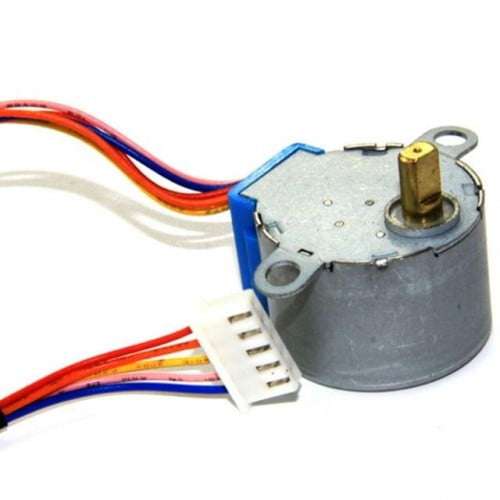

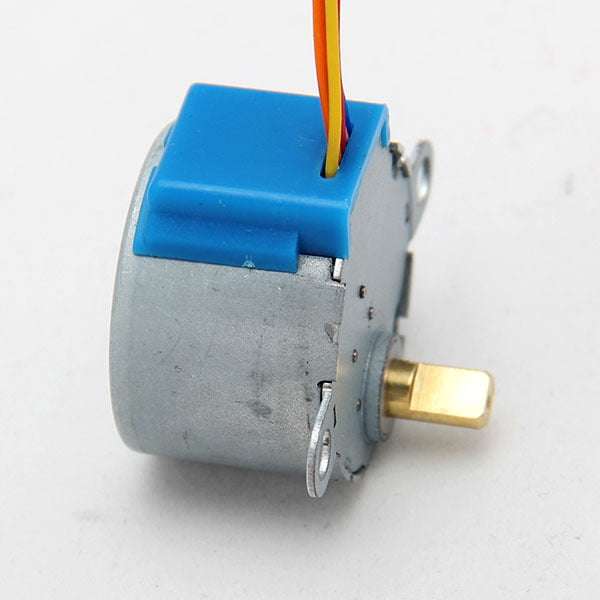

28BYJ-48 Stepper Motor Small(Arduino Compatible)

This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed for the quality of these compact stepper motors. The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires. As stated before the pack contains ULN2003 Stepper Motor Driver which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor. If you will give the ULN2003 stepper driver a certain pulse signal, it will drive step motor to a certain angle. The control of Stepper Motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses. Connect the 28BYJ-48 motor with the ULN2003 motor driver then interface this combination of motor and driver with Arduino, do some coding and your 28BYJ-48 Stepper Motor is ready to listen to your commands!!! Perfect!!! Features : Brand new and high-quality product. Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact size stepper motor perfect for small robotics applications. Package Includes : 1 x 28BYJ-48 Stepper Motor Specification: Model 28BYJ-48 Rated Voltage(V) 5 V Rated Current 500 mA Step Angle 5.625°/64 Reduction ratio 64:1 Resistance 50 Ω/Phase In-Traction Frequency(Hz) >600 Hz Out-Traction Frequency(Hz) >1000 Hz In-traction Torque(mN-m) 34.3 Self-positioning Torque(mN-m) 34.3 Friction Torque(gf-cm) 600-1200 Pull in Torque(gf-cm) 300 Insulation Grade A Shaft Type Double D-Type Driver Dimensions(LxWxH) mm 34x18x10 Motor Weight(gm) 34 Shipment Weight 0.125 kg Shipment Dimensions 14 × 8 × 4 cm
