Waveshare IMX219-160 8MP IR-CUT Camera,162° FOV, Applicable For Jetson Nano / Compute Module

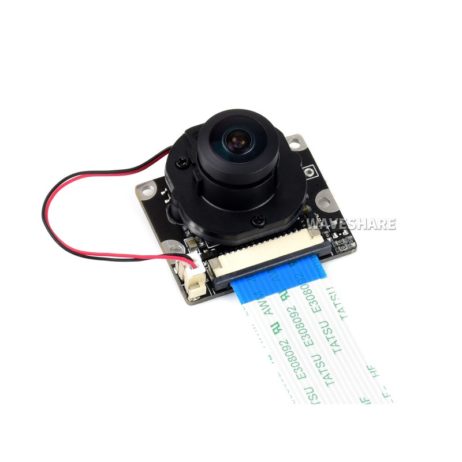

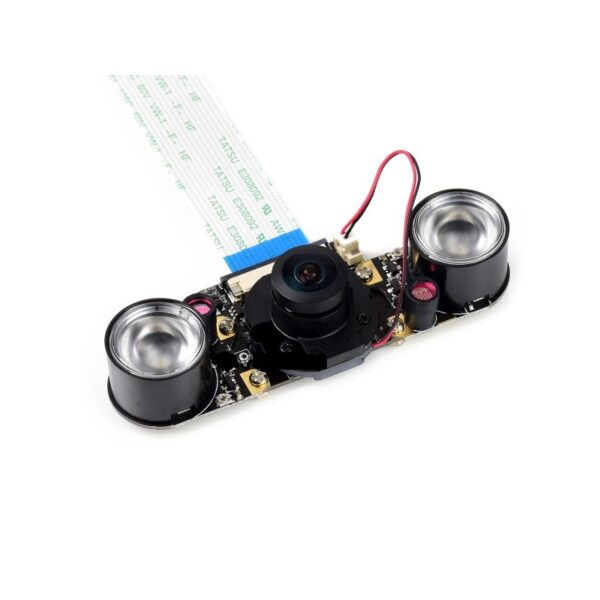

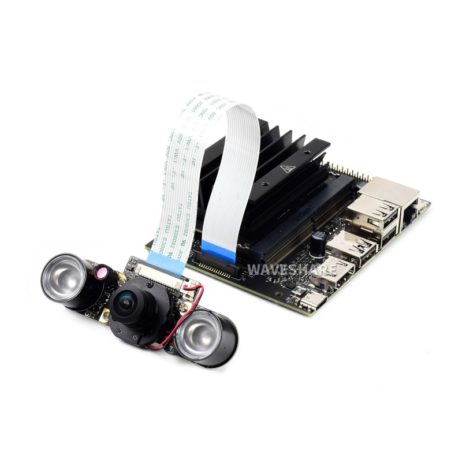

Introducing the Waveshare IMX219-160 8MP IR-CUT Camera, featuring infrared night vision with a wide 162° Field of View (FOV). With a resolution of 800 megapixels, this camera is compatible with the Jetson Nano and can be utilized with Compute Module 3/3 expansion boards such as the Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board from Waveshare, and the Stereo Pi board. Key Features: – 800-megapixel resolution – 160° Field of View (FOV) – IR-CUT infrared filter – Compatible with Jetson Nano – Integration with Compute Module 3/3 expansion boards This camera is equipped with an IR-CUT function, enabling it to switch between day and night modes. By connecting the IO port on the board to GPIO, a high level (3.3V) can be input to turn off the infrared filter, activating night vision mode. Conversely, inputting a low level (GND) turns on the infrared filter, setting it to daytime mode. It’s important to note that in night vision mode, a reddish effect may appear when taking pictures during the day, which is a normal phenomenon. Choose the Waveshare IMX219-160 8MP IR-CUT Camera for a versatile and high-quality imaging solution compatible with various platforms and expansion boards. Package include: 1 X IMX219-160 IR-CUT Camera (with FFC) 1 X Infrared LED Board (B) 2 PCS Categories: Cameras, IoT Cameras Tag: Waveshare
