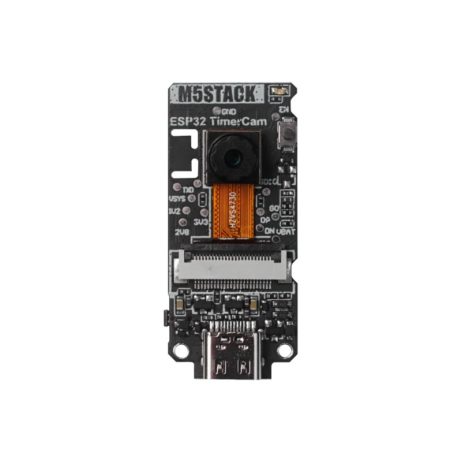

M5STACK ESP32 PSRAM Timer Camera (OV3660)

The ESP32-based Timer Camera camera module has 8MB of inbuilt PSRAM. The OV3660 3 million (3MP) pixel camera has a DFOV of 66.5 ° and can capture up to 2048 x 1536 resolution images. The board has a reset button and an LED status indicator. The timer camera is made with incredibly minimal power consumption in mind. Timing, sleep, and wake-up capabilities can be used with the RTC (BM8563). Useful link: Arduino IDE environment setup-TimerCAM/UnitCAM Features: Design based on ESP32 Wi-Fi image/video transmission Timed sleep wake up Status indicator Ultra-low power design Programming platform:ESP-IDF/Arduino/UIFlow Specification: Flash 4M Image Sensor OV3660 Maximum resolution 3M pixels Output format 8-/10-Bit RAW, RGB and YCbCr output, compression. DFOV 66.5° Battery Interface Specifications SH1.0-2P Shipping Weight 0.016 kg Shipping Dimensions 6 × 6 × 2 cm Package Includes: 1 x M5STACK ESP32 PSRAM Timer Camera (OV3660) Categories: Cameras, IoT Cameras Tags: ESP32, IoT Cameras, M5STACK
